Solar Surge Protection Devices (SPD) and Lightning Grounding: Protecting Sensitive Inverter Microelectronics from Transient Overvoltages

When investing tens of thousands of dollars into residential or commercial solar photovoltaic infrastructure, property owners routinely safeguard modules with warranties covering glass breakage and silicon output degradation. Yet one of the most common causes of catastrophic solar hardware failure receives surprisingly little attention during budget planning: transient electrical overvoltages induced by lightning strikes and utility grid switching surges. Without robust Surge Protection Devices (SPDs) and low-impedance earth grounding, sensitive inverter electronics remain vulnerable to instantaneous destruction.

1. How Induced Overvoltages Enter Solar Systems

A common misconception among solar owners is that catastrophic lightning damage only occurs if a lightning bolt scores a direct hit on a rooftop panel. In reality, direct strikes are rare; the overwhelming majority of lightning damage is caused by electromagnetic induction.

When a cloud-to-ground lightning stroke discharges within a half-mile radius of a building, massive pulsed magnetic fields radiate across the landscape. Rooftop DC conductors running across aluminum racking form large inductive loops. These loops absorb electromagnetic pulse (EMP) energy, inducing lightning surges of 5,000 to 20,000 volts that travel along DC wiring into string inverters, vaporizing delicate microprocessors, MOSFET transistors, and MPPT tracking boards in fractions of a microsecond.

2. Type 1 vs. Type 2 Surge Protection Devices (SPDs)

To counter transient surges, solar electrical engineering mandates the strategic deployment of specialized DIN-rail Surge Protection Devices compliant with UL 1449 and IEC 61643-31 standards:

Type 1 SPDs: Installed on the line-side of the main electrical service entrance, Type 1 arresters are engineered to handle high-energy direct lightning currents (10/350 microsecond waveform), protecting against surges entering from external utility poles.

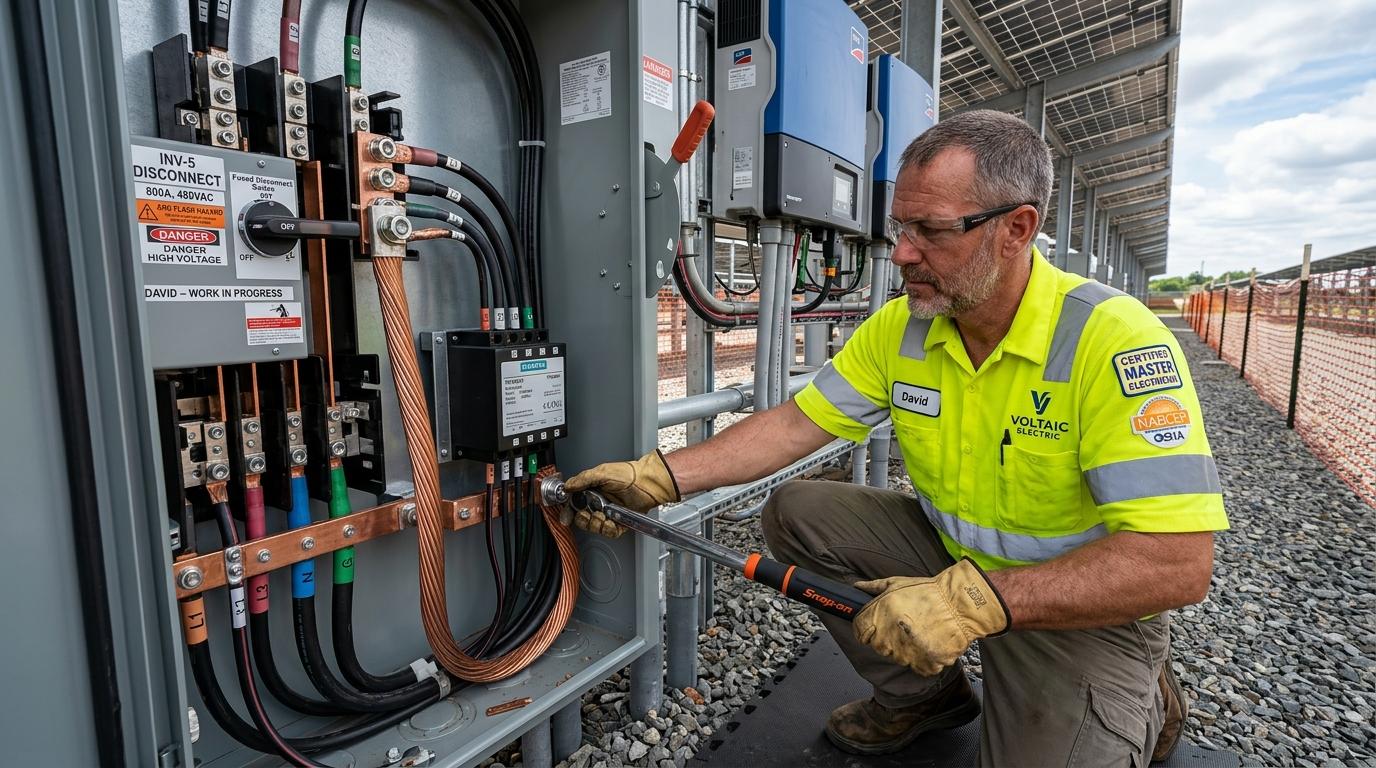

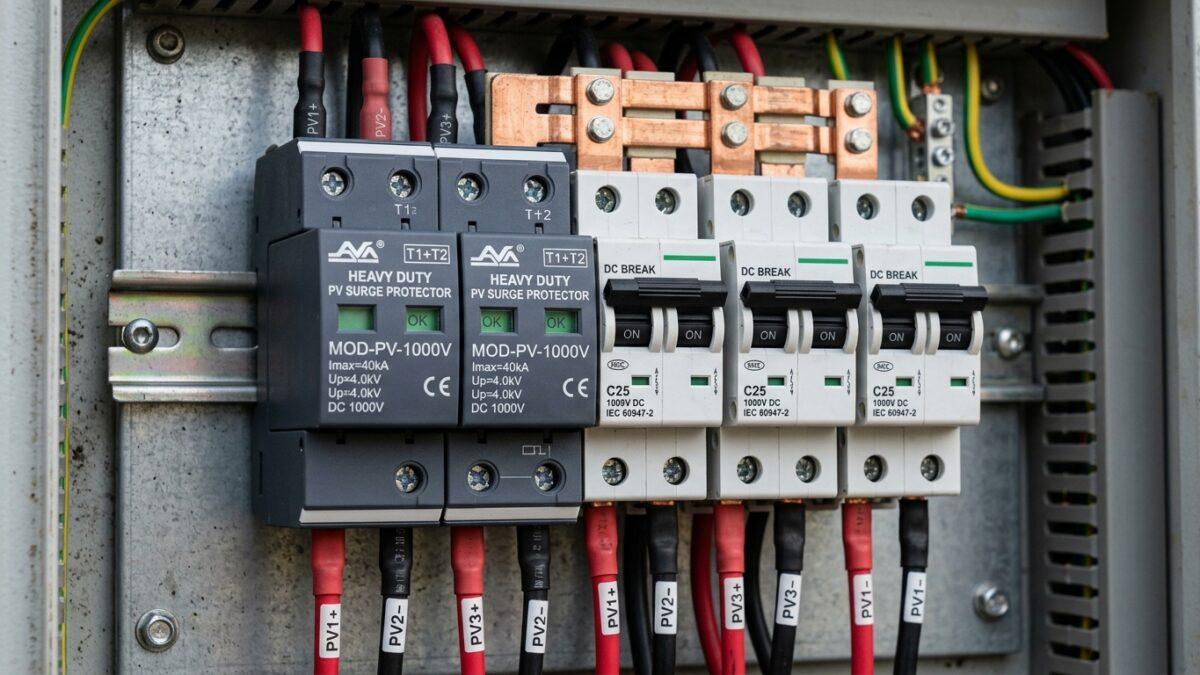

Type 2 SPDs: Installed inside DC string combiner boxes and inverter AC load centers, Type 2 devices suppress induced transient switching spikes (8/20 microsecond waveform). Utilizing heavy-duty Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs), they transition from high electrical resistance to near-zero resistance within nanoseconds, shunting destructive surge currents safely to earth before voltages reach sensitive inverter circuits.

3. Grounding Electrode Conductors and Low Impedance Pathways

Surge protection devices are completely ineffective without a properly engineered earth grounding pathway. Surge arresters do not ‘absorb’ electricity; they simply redirect excess surge current away from electronics toward physical ground.

The National Electrical Code (NEC Article 250 and 690) requires all metal solar racking rails, panel frames, and inverter enclosures to be bonded together with minimum 6 AWG copper Grounding Electrode Conductors (GEC) connected to heavy galvanized ground rods. The grounding system must achieve an earth resistance of less than 25 ohms (ideally under 5 to 10 ohms in high-lightning regions like the American Southeast), ensuring high-frequency surge energy follows the path of least resistance into the soil.

Essential Insurance for Long-Term Solar Health

Modern solar inverters represent sophisticated computer workstations managing hundreds of amps of raw current. Spending a modest $300 to $600 to install certified Type 2 DC and AC surge arresters during initial array installation is the most cost-effective insurance policy available, preventing thousands of dollars in premature inverter replacements and warranty claim denials.
