Building-Integrated Photovoltaics (BIPV) & Solar Shingles: Aesthetics, Fire Ratings, and ROI vs. Traditional Racked Panels

For homeowners seeking clean energy independence, aesthetic resistance from Homeowners Associations (HOAs) and personal architectural preferences have long been significant obstacles to traditional rooftop solar. Bulky aluminum racking rails, elevated lag bolt roof penetrations, and rectangular silver frames protruding above asphalt shingles can clash with modern architectural lines. Today, Building-Integrated Photovoltaics (BIPV) and Solar Shingles have evolved from costly boutique prototypes into certified, rugged building materials that simultaneously protect homes from the elements and generate substantial clean kilowatt-hours.

1. Architectural Integration and Weatherproofing Mechanics

Unlike conventional solar modules that are lag-bolted several inches above existing asphalt or tile shingles, BIPV solar roof tiles serve as the primary protective roofing envelope itself. Products like GAF Energy Timberline Solar, CertainTeed Solstice, and Tesla Solar Roof utilize tempered solar glass laminated directly over high-efficiency monocrystalline solar cells, encapsulated inside structural composite polymer or steel casings.

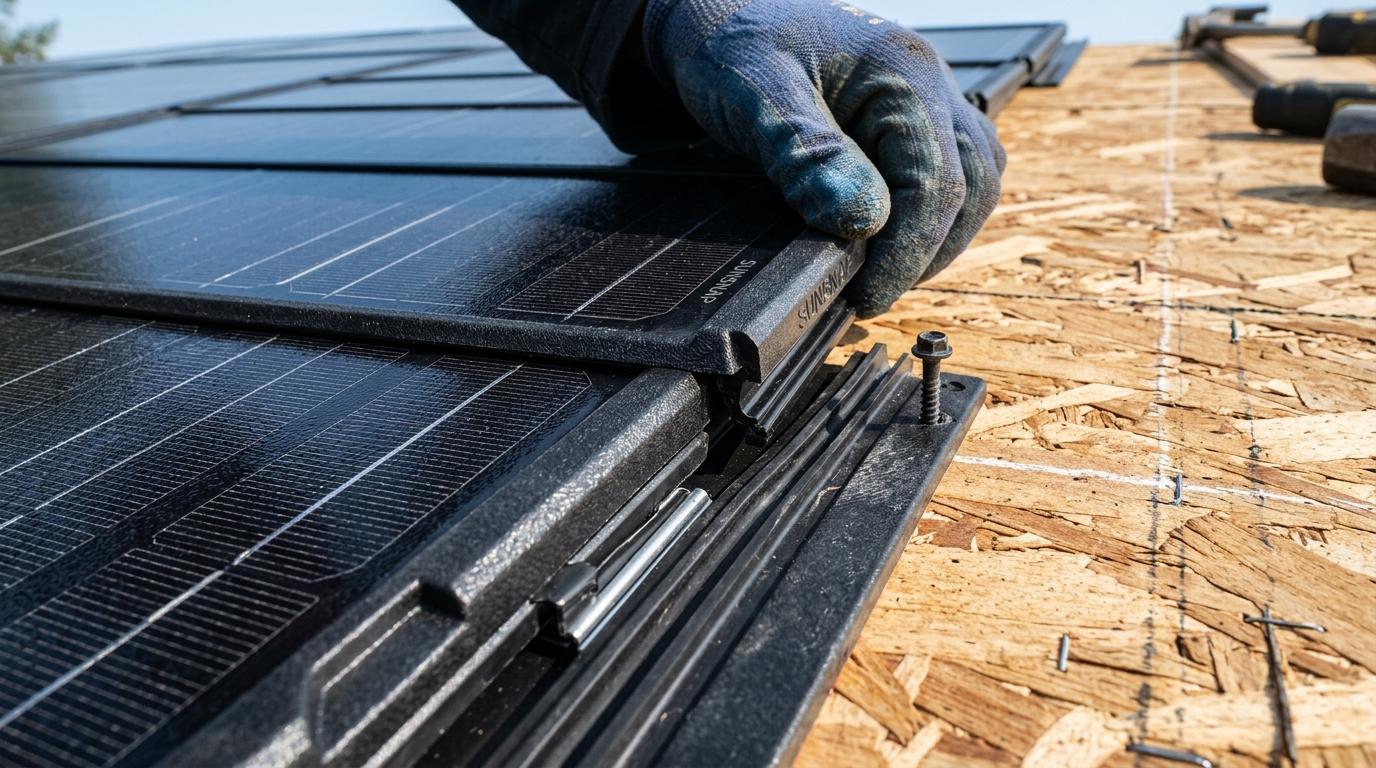

These solar tiles interlock mechanically with adjacent non-active transition shingles using water-shedding overlap channels, ring-shank roofing nails, and factory-integrated electrical connectors. Because they lay flush with the roof deck, solar shingles completely eliminate the risk of wind-driven debris or birds nesting beneath arrays, while carrying top-tier Class A fire resistance ratings and 130 mph hurricane wind certifications.

2. Thermal Dissipation and Efficiency Trade-Offs

From a semiconductor physics perspective, BIPV shingles face a distinct thermodynamic challenge: heat dissipation. Traditional racked solar panels benefit from a 4-to-6-inch air gap beneath the modules, promoting continuous passive convection cooling. Because solar shingles sit directly against wooden roof decking and water-resistant synthetic underlayment, trapped radiant attic heat causes operating temperatures to climb higher on hot summer afternoons.

Modern solar shingles counter this thermal penalty through rear ventilation channels and advanced N-type silicon solar cells with lower temperature coefficients (losing less than 0.30% output per degree Celsius increase). While conventional high-end panels achieve 21% to 23% module efficiency, premium solar shingles now deliver an impressive 17.5% to 19.5% efficiency, providing ample energy harvest across spacious roof planes.

3. The Reroofing Financial Equation: When Does BIPV Win?

When evaluating pure equipment cost per watt, traditional racked solar panels remain 20% to 35% less expensive than solar shingles. However, this comparison changes dramatically when a homeowner requires a complete roof replacement. Installing traditional solar over an aging 20-year-old roof is financially inefficient, as homeowners must pay thousands in future labor costs to detach and reset the panels when the roof eventually fails.

When budgeted as a single combined project—replacing an end-of-life roof and installing solar at the same time—BIPV delivers compelling value. In many jurisdictions, the federal clean energy investment tax credit (ITC) applies to the entire solar-active roofing surface and associated electrical installation, substantially softening total out-of-pocket costs.

The Verdict on Solar Roof Shingles

If your roof has 15 or more years of remaining structural lifespan, standard high-efficiency racked solar panels remain the most cost-effective path to utility savings. But if you are building a custom home, replacing an aging roof, or seeking flawless architectural curb appeal, modern building-integrated solar shingles represent the premier fusion of structural durability and clean energy generation.
