Thermal Runaway in Solar Lithium Batteries: Multi-Layer Prevention and Arc-Fault Mitigation

As residential energy storage installations accelerate worldwide, fire safety has emerged as the defining engineering benchmark for battery manufacturers and municipal inspectors alike. While millions of residential lithium battery packs operate every day without incident, the fundamental hazard that engineers design against is thermal runaway – an uncontrollable, self-heating exothermic reaction that occurs when a cell internal temperature exceeds safe thresholds.

Understanding how modern battery management systems (BMS), thermal barriers, and electrical safety standards isolate cell-level defects ensures homeowners can invest in whole-home backup power with absolute confidence.

1. The Chemistry of Thermal Runaway: What Triggers Failure?

Thermal runaway is initiated when an internal failure – caused by a microscopic manufacturing defect, sustained overcharging, mechanical puncture, or severe external heat – creates an internal electrical short circuit between cathode and anode:

• Self-Heating Phase (80 C to 120 C / 176 F to 248 F): The protective solid electrolyte interphase (SEI) layer on the graphite anode decomposes, releasing heat into the cell electrolyte.
• Separator Breakdown (130 C to 170 C / 266 F to 338 F): Standard polymer separators melt, causing direct electrical contact between opposing electrodes and escalating current flow.
• Oxygen Release and Combustion (Over 200 C / 392 F): In nickel-rich chemistries like NMC, the cathode lattice breaks down and releases free oxygen, fueling flammable organic solvent vapors in a self-sustaining combustion cycle.

This fundamental chemical difference explains why the residential market has shifted decisively toward Lithium Iron Phosphate (LiFePO4). LFP covalent phosphorus-oxygen bonds remain structurally stable up to 270 C (518 F) and release virtually no oxygen during internal failure, dramatically curbing runaway propagation.

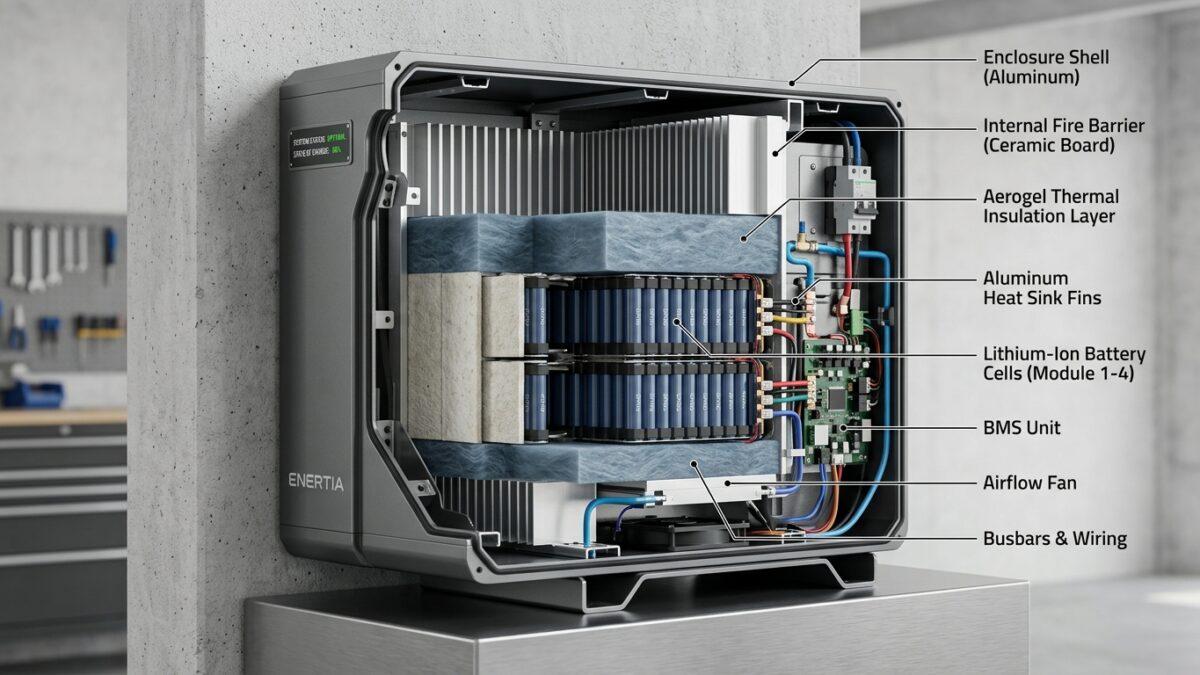

2. Multi-Layer Hardware Defenses: Aerogels and Ceramic Barriers

Tier-one residential battery manufacturers implement multi-tiered physical defenses designed to ensure that even if a single cell enters thermal runaway, the event remains strictly quarantined:

• Silica Aerogel Thermal Blankets: Ultralight aerogel insulation placed between cell modules provides extreme thermal resistance, preventing 600 C temperatures in one cell from conducting into neighboring cells.
• Ceramic Flame Barriers: Dense ceramic composite plates line the module interior, resisting direct flame impingement and preventing burn-through to the external aluminum chassis.
• Directional Pressure Relief Vents: Engineered burst discs direct combustible gases out of dedicated exhaust channels toward outdoor ventilation rather than permitting dangerous internal pressure buildup.

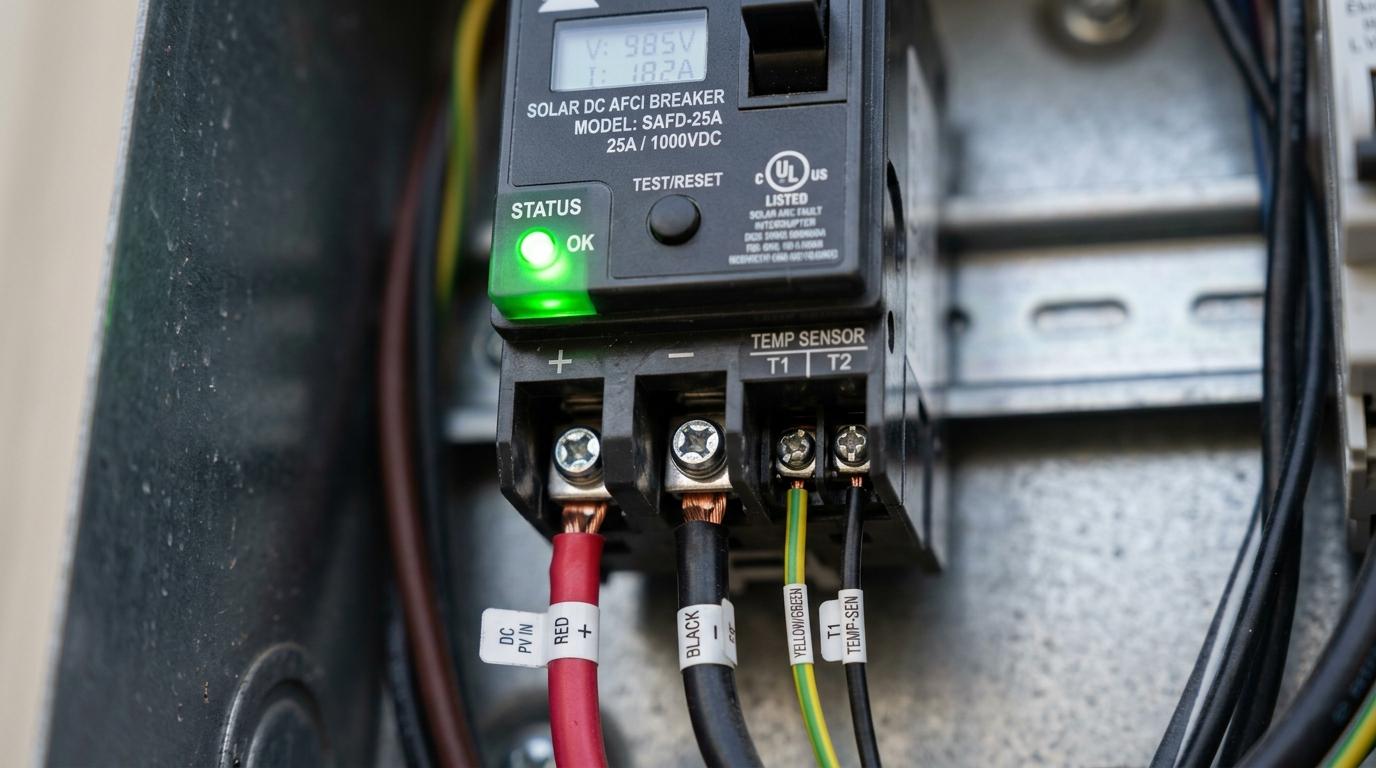

3. Electrical Arc-Fault Detection (UL 1699B)

Thermal runaway is not solely caused by internal chemistry; loose external DC electrical connections can generate high-temperature electrical arcs exceeding 3,000 C. Under National Electrical Code (NEC) guidelines, solar-plus-storage systems must incorporate Arc-Fault Circuit Interrupters (AFCI).

Modern inverters utilize digital signal processors (DSP) that continuously analyze current waveform harmonics. When the characteristic high-frequency noise of an electric arc is detected, the AFCI trips within 50 milliseconds, cutting DC current flow before sparks can ignite surrounding building materials.

Rigorous Certification: The UL 9540A Standard

Before a residential battery system can be installed inside an attached residential garage, building codes require compliance with UL 9540A large-scale fire testing. In this destructive laboratory evaluation, technicians intentionally force a battery cell into thermal runaway and verify that flames, toxic gases, and heat cannot spread beyond the factory metal enclosure.

By combining inherently stable LiFePO4 chemistry with aerogel barriers, digital AFCI interruption, and UL 9540A certification, modern residential solar batteries represent some of the most rigorously engineered, fire-safe electrical appliances in the home.
