Solar Inverter Clipping: Why Sizing Your Solar Array Higher Than Your Inverter Saves Money

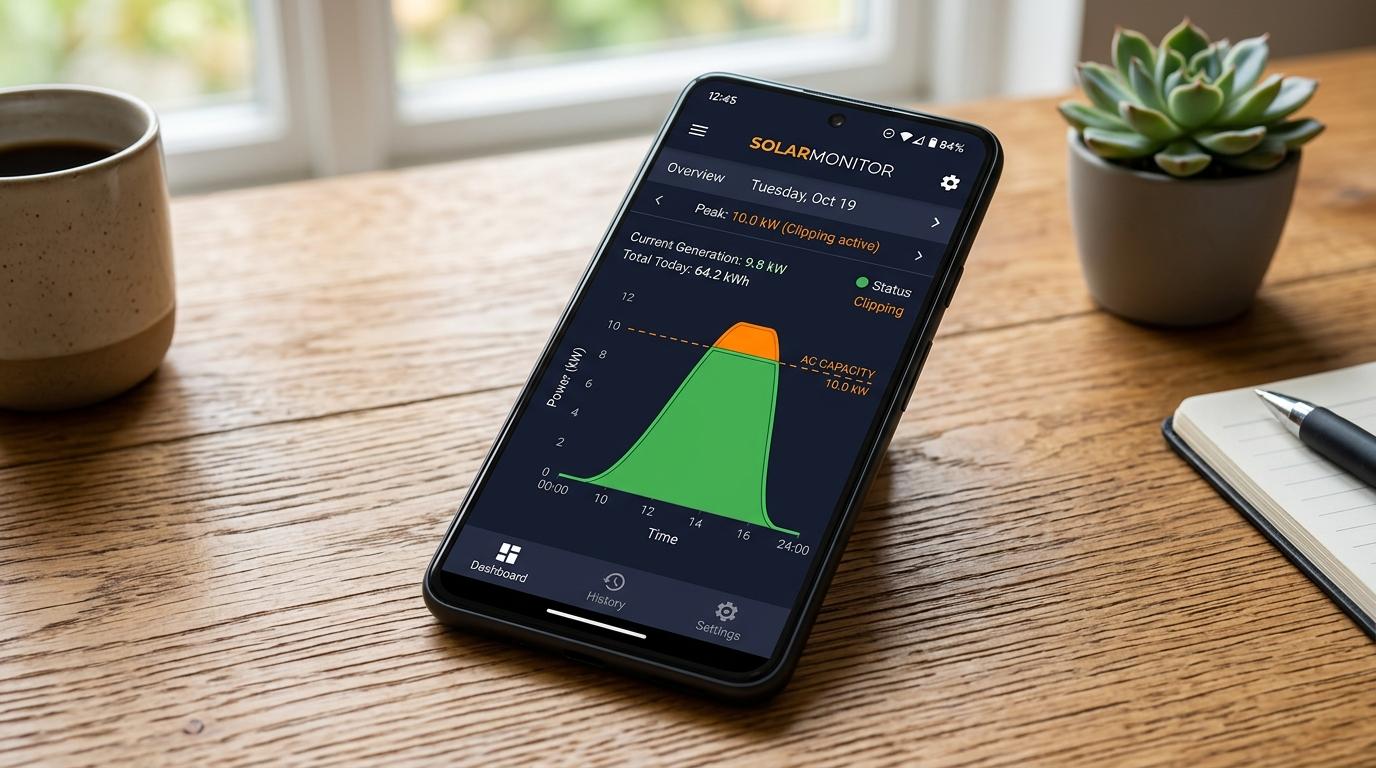

Few sights cause new solar homeowners as much anxiety as reviewing their solar monitoring app on a brilliant cloudless summer afternoon and seeing their production curve form a completely flat plateau. This phenomenon is known as solar inverter clipping, and panic-stricken owners often assume their equipment is defective or undersized.

In reality, deliberate inverter clipping is a fundamental engineering strategy designed into the world’s most efficient solar systems. Here is why pairing a larger solar array with a smaller inverter actually puts more total money in your pocket.

1. Understanding the DC-to-AC Inverter Loading Ratio (ILR)

Solar panels produce Direct Current (DC) electricity, while your household appliances run on Alternating Current (AC). The relationship between your solar panel capacity and your inverter’s maximum continuous AC output rating is called the Inverter Loading Ratio (ILR) or DC-to-AC ratio.

For example, if you install a 10 kW DC solar array paired with a 7.6 kW AC string inverter, your DC-to-AC ratio is 1.31. Because the inverter’s maximum output is capped at 7,600 watts, any instantaneous DC power generated above 7.6 kW during midday peak hours cannot be processed into AC electricity—the inverter throttles its voltage, “clipping” the excess energy.

2. The Economics of the Bell Curve: Shoulder Hours vs. Noon Spikes

To understand why clipping is financially smart, observe solar generation across a full day. Solar production does not remain constant; it follows a gradual bell curve:

• Morning and Late Afternoon (“Shoulder Hours”): Sunlight hits panels at shallow angles. A system with a 1.0 DC-to-AC ratio operates well below inverter capacity during these early and late hours.
• Overcast and Winter Days: Diffuse clouds and low sun angles keep solar output suppressed to 30% to 60% of nameplate rating.
• Oversized DC Array Benefit: By oversizing your DC panel capacity (e.g., a 1.25 to 1.35 ratio), your inverter turns on earlier in the morning, runs at higher capacity during cloudy weather, and stays active later in the evening.

While you might clip a modest 1% to 2% of total potential energy during the hottest hour of summer noon, you gain 10% to 15% more total kilowatt-hours across mornings, afternoons, and overcast days over the course of the year.

3. Inverter Cost and Electrical Busbar Limitations

The second compelling reason to accept modest clipping is capital cost. Inverters are among the most expensive components in a solar power plant. Stepping up to a larger inverter to capture that narrow 30-minute noon peak increases upfront equipment costs, requires thicker copper wiring, and can trigger a costly main electrical service panel upgrade under the NEC 120% rule.

Spending an additional ,500 to ,000 on electrical hardware simply to recover worth of clipped summer energy per year represents poor financial allocation.

The Ideal DC-to-AC Sizing Rule of Thumb

For most residential rooftop systems, experienced solar engineers target a DC-to-AC ratio between 1.20 and 1.30. If your installation includes a DC-coupled home battery, that surplus solar energy can be routed straight into your battery cells rather than clipped. Seeing a flat plateau on your midday monitoring graph is not a flaw—it is the mark of a cost-optimized, highly profitable solar installation.
