Rapid Shutdown Systems and NEC 2023 MLPE: How Module-Level Fire Safety Requirements Protect First Responders

Whenever daylight illuminates a residential rooftop photovoltaic array, solar cells instantly generate high-voltage direct current (DC) power ranging from 300 to 600 volts. Unlike household alternating current (AC) appliances that can be completely de-energized by flipping a circuit breaker inside the service panel, traditional solar DC string conductors remain energized and dangerous as long as sunlight strikes the modules. To safeguard municipal firefighters conducting rooftop structural ventilation or emergency water operations, electrical codes have introduced mandatory Rapid Shutdown Systems governed by Module-Level Power Electronics (MLPE).

1. The Evolution of NEC Article 690.12 Code Standards

The National Electrical Code (NEC) Article 690.12 governs photovoltaic rapid shutdown mandates. Under early code iterations (NEC 2014), shutdown rules only required voltage suppression for conductors exiting a 10-foot boundary around the solar array. However, this still left dangerously high DC voltages active within the array footprint itself, exposing emergency responders cutting through roof decking to life-threatening electric shock hazards.

Modern code revisions (NEC 2020 and NEC 2023) established strict module-level de-energization. Concurrently inside and outside the 1-foot array boundary, direct-current voltage across all controlled conductors must drop to no more than 30 volts within 30 seconds of rapid shutdown activation. Achieving this strict safety limit necessitates individual electronic switches mounted directly to every solar panel.

2. How MLPE Devices Quench High Voltage Instantly

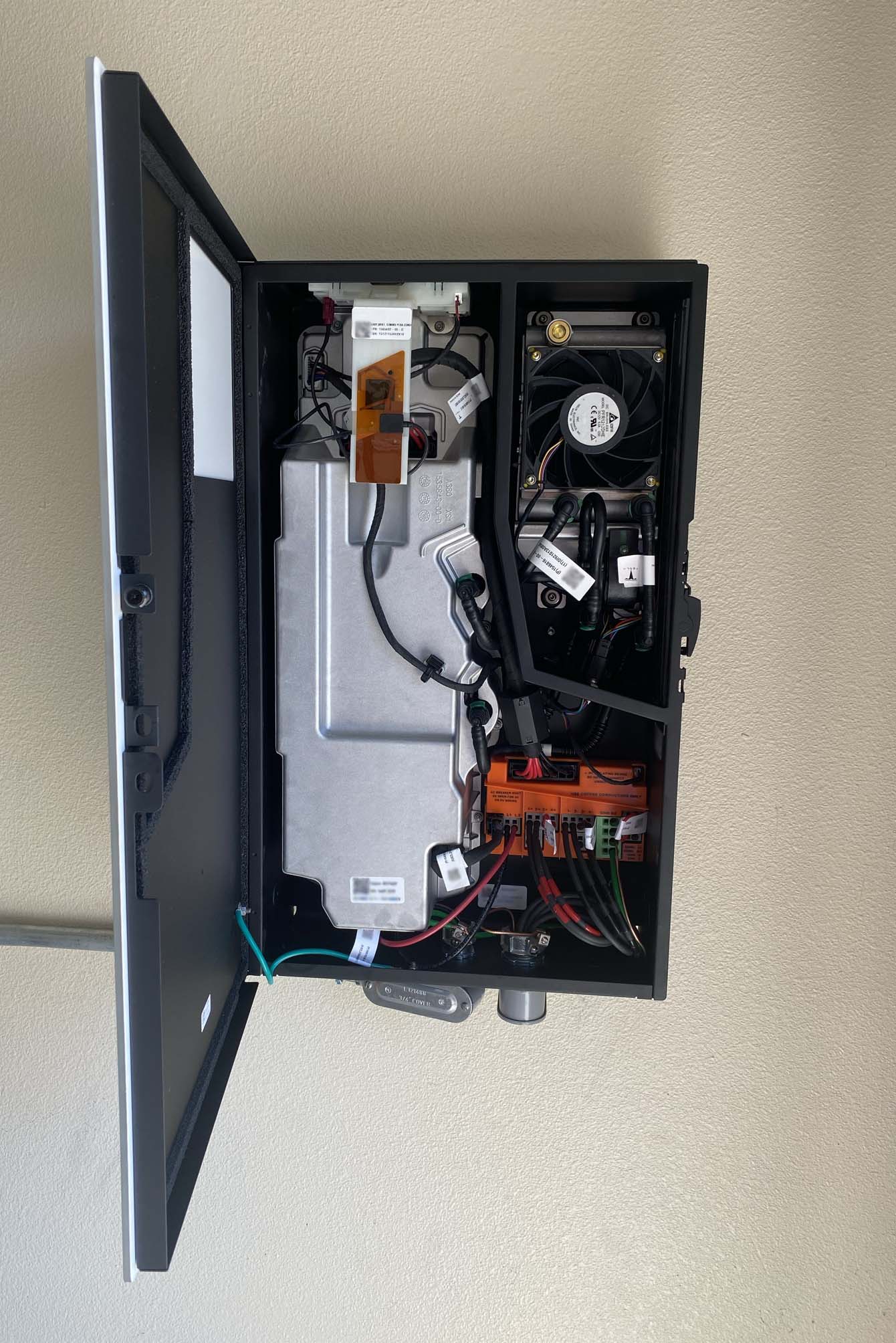

To comply with module-level rapid shutdown rules, modern installations utilize two primary MLPE technologies: Microinverters and Smart DC Optimizers equipped with integrated rapid shutdown receivers.

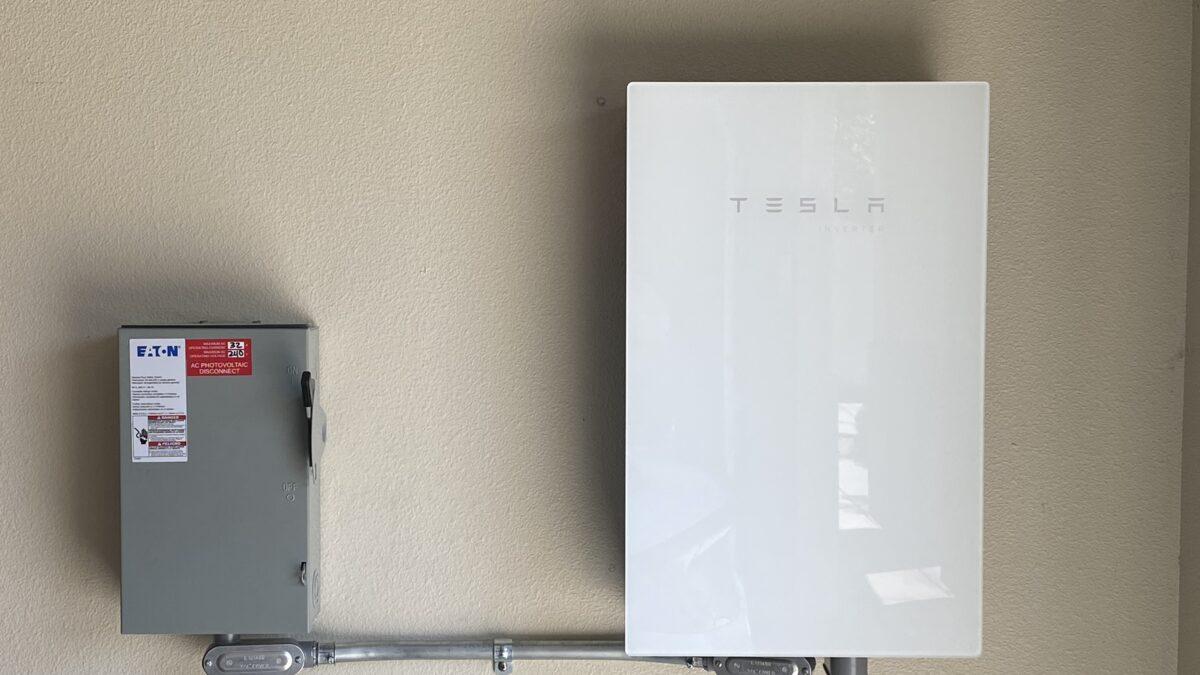

These devices communicate continuously with a central transmitter via high-frequency Power Line Communication (PLC) signals (frequently utilizing the standardized SunSpec open protocol). The moment an external emergency push button is pressed, the utility grid drops, or the main AC disconnect switch is opened, the ‘keep-alive’ PLC heartbeat signal vanishes instantly. Deprived of the heartbeat signal, internal solid-state MOSFET switches on each module-level receiver disconnect within milliseconds, dropping the panel output to a harmless safety level (typically 1V per optimizer, or absolute zero volts for microinverters).

3. Arc Fault Protection (AFCI) and Ground Fault Integration

Beyond external emergency firefighter disconnects, advanced rapid shutdown controllers integrate intelligent Arc Fault Circuit Interrupters (AFCI) compliant with UL 1699B standards. Rooftop photovoltaic wiring is subjected to intense seasonal thermal expansion, high wind vibration, and rodent gnawing, which can create loose MC4 connector joints or degraded insulation.

These micro-gaps generate continuous high-temperature electrical plasma arcs capable of igniting roofing materials. Modern MLPE systems sample DC current waveforms thousands of times per second, detecting the unique high-frequency electrical noise characteristic of an arcing fault and triggering instantaneous array shutdown before localized heat can ignite combustible asphalt shingles.

Summary: Mandatory Compliance for Modern Clean Energy

Rapid shutdown infrastructure is not merely an administrative code checkbox; it is the vital safety bridge connecting high-voltage rooftop generation with municipal first-responder safety. By investing in certified SunSpec-compliant MLPE hardware, homeowners ensure total code compliance, maximize property fire defense, and guarantee seamless permitting approval from local building authorities.
